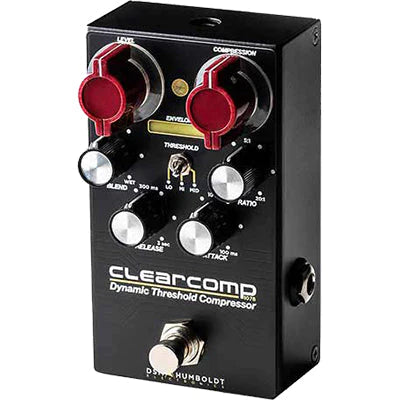

DSM & Humboldt ClearComp Compressor
INSPIRED BY STUDIO COMP/ LIMITERS, BUT AT YOUR FEET
DSM & Humboldt Electronics proudly presents the new ClearComp Compressor.
A BRAND NEW TOPOLOGY TO GUARANTEE BOTH: TRANSPARENCY AND LOW NOISE
The ClearComp is a super transparent compressor with a unique Dynamic Threshold topology engineered and developed by DSM & Humboldt. Most compressors dynamically reduce the gain progressively as the level rises above the threshold. Our DT Topology dynamically modifies the threshold with a fixed gain reduction, achieving a natural and transparent compression effect with a lower noise floor, less coloring and higher dynamic range. A multicolor 5-stage LED bargraph is featured to visualize the resulting envelope level in real time.
CONTROLS
The ClearComp feature a full set of controls: Compression: Controls the input gain of the compressor, hence, the resulting overall compression. Ratio: Adjusts the gain reduction ratio, from slight compression (1:2) to full limiting (1:20). Attack: Controls the attack time, from 5ms for snappy slaps to 100ms for a more natural feel. Release: Adjusts the length of time the gain reduction is applied, from 30ms to 3s. Blend: Blends the compressed signal with the unaffected input signal. Level: Sets the output level of the compressor. Threshold switch: 3 position switch that sets the starting point of the dynamic threshold on either HI MID or LOW. depending on the output level of the instrument being connected, select HI for high power pickups or active instruments, MID for regular output guitar and basses, and LOW for low output instruments, like vintage single coils. FROM SCRATCH, searching for the most versatile and useful drive, that adapts to your playing style and gear, and capable to produce from the sweetest clean jazzy whispers, to the gnarliest of high gain chugs. The range of tones rivals any digital modeler around, but with that immediate response and complex dynamics that only analog circuits can deliver.
TECH SPECS
Power requirements: 9V to 18V, 100mA Regulated, center negative DC power supply (not included) Size: 120mm(L)x57mm(H)x65mm(w) Weight: 380gr
The Mode Switch can’t be more useful. The NORMAL mode makes the Silver Lining work as a transparent drive, with sparkly highs and solid low end. The PREAMP mode is perfect to use the unit directly into a power amp without losing the high end, and has extra volume to drive the power amp as loud as you want. And the MID BOOST mode, which boosts the 800hz range and smoothes the highs for an extra warm and round tone.
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
INSPIRED BY STUDIO COMP/ LIMITERS, BUT AT YOUR FEET
DSM & Humboldt Electronics proudly presents the new ClearComp Compressor.
A BRAND NEW TOPOLOGY TO GUARANTEE BOTH: TRANSPARENCY AND LOW NOISE
The ClearComp is a super transparent compressor with a unique Dynamic Threshold topology engineered and developed by DSM & Humboldt. Most compressors dynamically reduce the gain progressively as the level rises above the threshold. Our DT Topology dynamically modifies the threshold with a fixed gain reduction, achieving a natural and transparent compression effect with a lower noise floor, less coloring and higher dynamic range. A multicolor 5-stage LED bargraph is featured to visualize the resulting envelope level in real time.
CONTROLS
The ClearComp feature a full set of controls: Compression: Controls the input gain of the compressor, hence, the resulting overall compression. Ratio: Adjusts the gain reduction ratio, from slight compression (1:2) to full limiting (1:20). Attack: Controls the attack time, from 5ms for snappy slaps to 100ms for a more natural feel. Release: Adjusts the length of time the gain reduction is applied, from 30ms to 3s. Blend: Blends the compressed signal with the unaffected input signal. Level: Sets the output level of the compressor. Threshold switch: 3 position switch that sets the starting point of the dynamic threshold on either HI MID or LOW. depending on the output level of the instrument being connected, select HI for high power pickups or active instruments, MID for regular output guitar and basses, and LOW for low output instruments, like vintage single coils. FROM SCRATCH, searching for the most versatile and useful drive, that adapts to your playing style and gear, and capable to produce from the sweetest clean jazzy whispers, to the gnarliest of high gain chugs. The range of tones rivals any digital modeler around, but with that immediate response and complex dynamics that only analog circuits can deliver.
TECH SPECS
Power requirements: 9V to 18V, 100mA Regulated, center negative DC power supply (not included) Size: 120mm(L)x57mm(H)x65mm(w) Weight: 380gr
The Mode Switch can’t be more useful. The NORMAL mode makes the Silver Lining work as a transparent drive, with sparkly highs and solid low end. The PREAMP mode is perfect to use the unit directly into a power amp without losing the high end, and has extra volume to drive the power amp as loud as you want. And the MID BOOST mode, which boosts the 800hz range and smoothes the highs for an extra warm and round tone.
