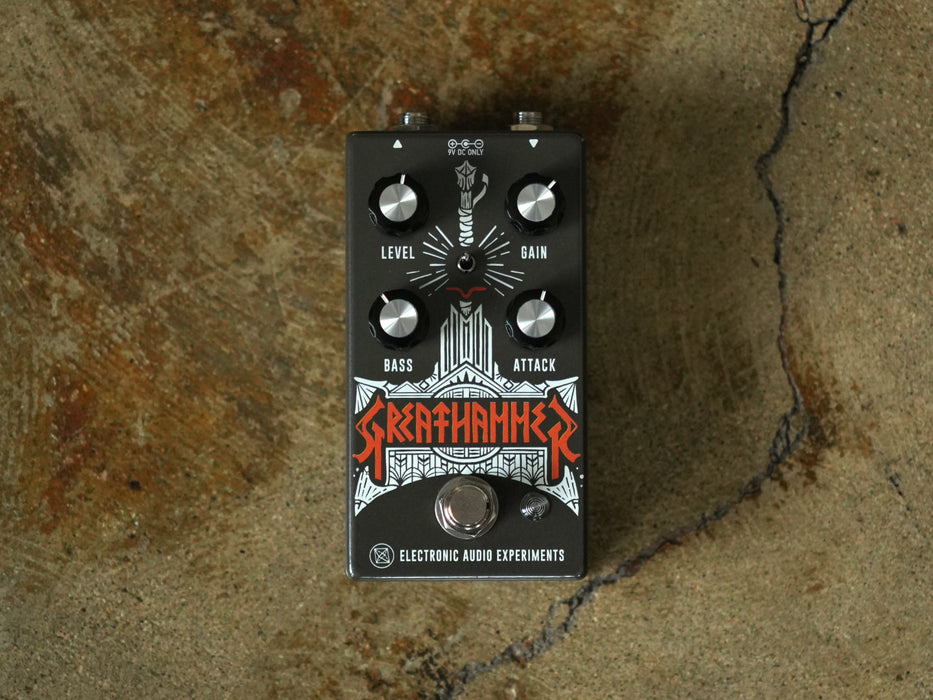

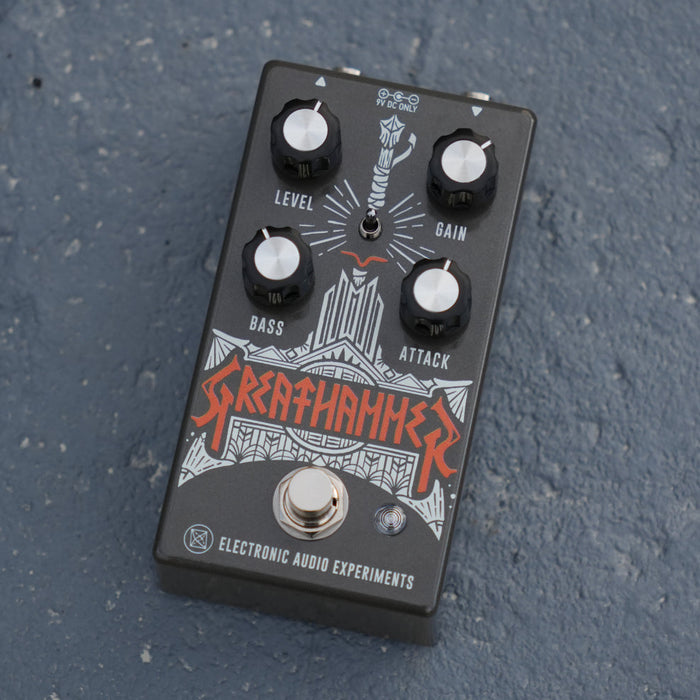

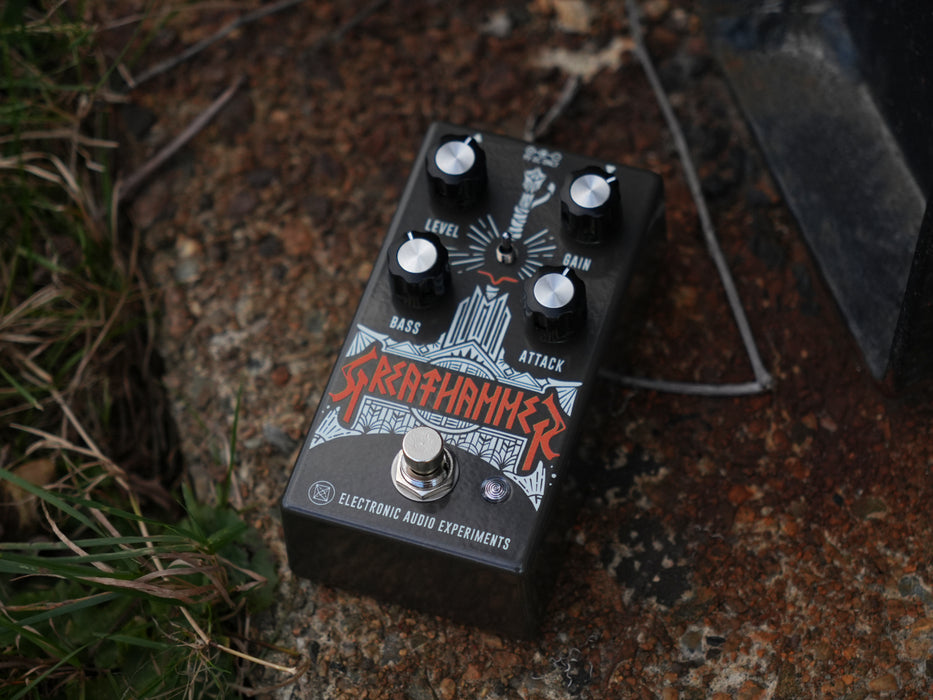

Electronic Audio Experiments Greathammer
$449.00
IN STOCK
The Electronic Audio Experiments Greathammer is a bass-focused overdrive that brings a distinct flavour of solid state thunder.
With a gain control spanning a 50dB range, the Greathammer can be restrained or rowdy. We took cues from a beloved 1970s Canadian bass amplifier, but we did not shy away from redesigning entire circuit blocks from scratch. Without taking away the classic piano-like attack that defined 90s noise rock, we expanded the tonal range to suit more tasteful playing or filthy, down-tuned mayhem. Critically, our circuit can achieve far deeper low frequency extension than its progenitors—all without the unnatural, disconnected feel of a traditional clean blend.
The Greathammer is equally effective in front of an amplifier or as a dedicated preamp. And, while we designed this with bass as a primary focus, it is quite striking on guitar as well.
Electrical Specifications
Bypass switching: Silent electronic switching with a high-headroom op amp buffer
Input impedance @ 1Khz: 1MΩ
Output impedance @ 1Khz: <1KΩ
Power: 9VDC, 2.1mm center negative barrel. The current draw is 70mA.
We recommend a regulated, isolated power supply rated for 100 mA minimum. The DC input is protected against reverse polarity and over-voltage up to 20V. Our pedals do not accept batteries.
Controls
-
Level: overall volume level, capable of extremely high output
-
Gain: signal gain, from clean to moderate to extreme. Approximately 50dB maximum passband gain.
-
Bass: post-clipping low frequency shelf boost, up to +14db at 100Hz and below
-
Attack: pre-gain tone control, adjusts frequencies above 1kHz to tailors the overall drive response and sharpness of pick attack
-
Notch (toggle): 3-position mid cut. Center is a full mid cut, down is a moderate mid cut, and up is flat mids.
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
Videos
The Electronic Audio Experiments Greathammer is a bass-focused overdrive that brings a distinct flavour of solid state thunder.
With a gain control spanning a 50dB range, the Greathammer can be restrained or rowdy. We took cues from a beloved 1970s Canadian bass amplifier, but we did not shy away from redesigning entire circuit blocks from scratch. Without taking away the classic piano-like attack that defined 90s noise rock, we expanded the tonal range to suit more tasteful playing or filthy, down-tuned mayhem. Critically, our circuit can achieve far deeper low frequency extension than its progenitors—all without the unnatural, disconnected feel of a traditional clean blend.
The Greathammer is equally effective in front of an amplifier or as a dedicated preamp. And, while we designed this with bass as a primary focus, it is quite striking on guitar as well.
Electrical Specifications
Bypass switching: Silent electronic switching with a high-headroom op amp buffer
Input impedance @ 1Khz: 1MΩ
Output impedance @ 1Khz: <1KΩ
Power: 9VDC, 2.1mm center negative barrel. The current draw is 70mA.
We recommend a regulated, isolated power supply rated for 100 mA minimum. The DC input is protected against reverse polarity and over-voltage up to 20V. Our pedals do not accept batteries.
Controls
-
Level: overall volume level, capable of extremely high output
-
Gain: signal gain, from clean to moderate to extreme. Approximately 50dB maximum passband gain.
-
Bass: post-clipping low frequency shelf boost, up to +14db at 100Hz and below
-
Attack: pre-gain tone control, adjusts frequencies above 1kHz to tailors the overall drive response and sharpness of pick attack
-
Notch (toggle): 3-position mid cut. Center is a full mid cut, down is a moderate mid cut, and up is flat mids.
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
