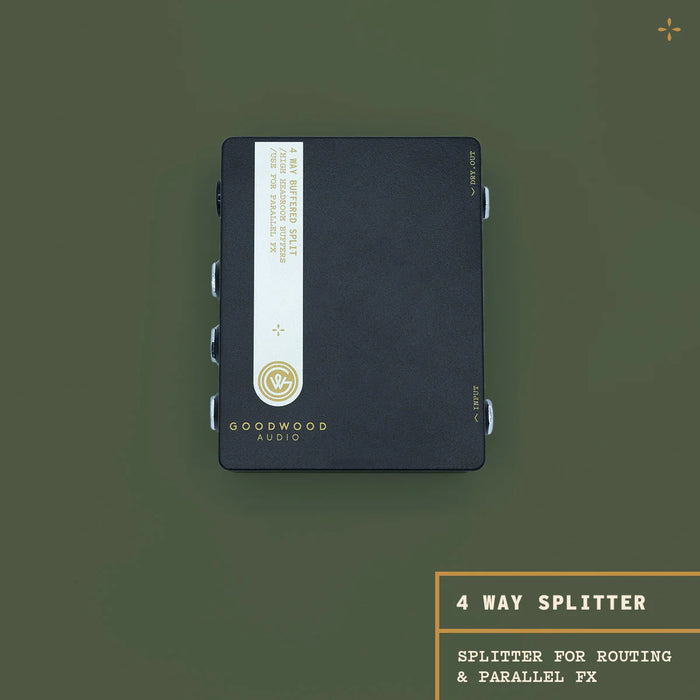

Goodwood Audio 4 Way Buffered Splitter Custom Junction
Where can I use a buffered splitter?
Buffered splitters can be useful in a wide range of applications.
1. Always on tuner outputs - allow your tuner to always get signal and tell you when you're out of tune.
2. Dry Output - Take a dry feed from your buffered splitter and send it to an amp or DAW. This allows you to get a pre-effect (or pre-wet effect) signal to use live or in studio!
3. Parallel effects - If you want to run your effects in parallel, you need a way to split your guitar signal to all of the wet effect inputs. Split signal to up to 4 effect inputs with this buffered splitter. One note here, you will need a separate line mixer to bring all of your parallel wet effects back to a master output.
What is the difference between outputs A, B, C and Dry?
Not a thing! They all have the same specs and all send the exact same signal (a split off of the 'Input'). The 'Dry' label can be handy to decipher which output is going to be used for the parallel dry signal when running multiple effects in parallel.
What's so great about these buffers?
In every junction box Goodwood Audio makes, we use high headroom, low output impedance buffers. These buffers can handle a lot of signal without clipping and sound great doing it.
Need an easy way to mix parallel effects back down to a mono or stereo output?
Check out our 3 Channel Stereo Line Mixer!
Custom Junctions are designed to last and come with a 2 year warranty!
All Custom Junctions are made with high quality, durable components.
Input Impedance: 1M
Output Impedance for A, B, C and Dry: 100ohms
Power Requirements: 2.1mm, 9v center negative. 50mA current draw.
Enclosure Dimensions: 119mm x 94mm x 34mm (LxWxH)
