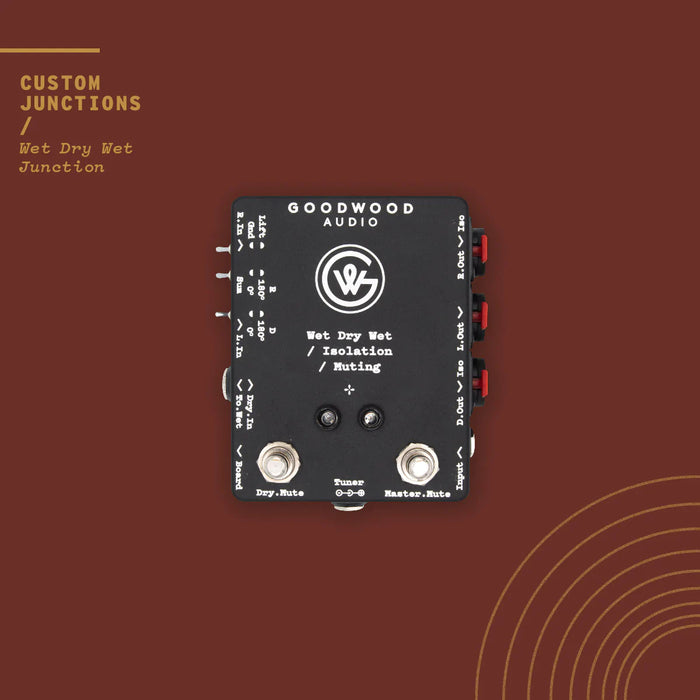

Goodwood Audio Custom Shop Wet Dry Wet Junction Box

**PLEASE NOTE THIS IS THE STANDARD VERSION, FEATURES BELOW LISTED AS 'OPTIONAL' INCUR AN UPCHARGE AND ARE AVAILABLE AS A CUSTOM ORDER.  EMAIL US INFO@PEDALEMPIRE.COM.AU**

How does it work?

By separating your pedalboard into a dry section (overdrives, distortion, compressor etc) and a modulation / wet section (chorus, delay, reverb etc) we can use this WDW Junction to route your signal in a number of exciting - Yes, exciting - ways.

This junction has a dedicated Dry, Left (wet) and Right (wet) output.  Since you can use 1, 2 or 3 of these outputs independently or simultaneously it means you can choose to route your board in any number of ways.

Furthermore you can mute your dry output (for instant access to ambient sounds) and use a master mute to kill all signal leaving your pedalboard.

The Master Mute is great for tuning silently or changing guitars quickly and quietly.

Manual & Specs

Inputs

'Input' Jack:

Plug your guitar in here.  Simple.

From the input signal is then sent to two places:
a. Tuner out - Use this jack for an always on tuner output.  Your tuner will always be tuning weather your signal is live or muted.
b. 'Board' - This jack is typically used to send signal to your first pedal.  Usually a fuzz, compressor or overdrive.

'Dry.In':

After your last dry effect (maybe your last overdrive, volume pedal, distortion) plug into this jack.  Signal is then going to be sent to two places:
a. 'D.Out' - Plug your dry amp into this jack.  If you don't want a dry amp for a gig / session, simply don't plug anything in!
b. 'To.Wet' - Plug your first modulation/wet effect in here.  After this first wet effect you can then use it's outputs (or a later pedal in your wet chain) to split your signal to stereo.

'L.In' and 'R.In':

These are your Left and Right inputs.  From your last wet effect in either mono (use the L.In jack) or stereo (use both L/R inputs) you can now complete the patching of this box.  From the Left and Right inputs, signal sends straight through to the other side of the box!

See 'Summing' for more info on how you can access summing options on your WDW Junction.

Summing

By default, your WDW Junction will ship in Stereo Sum mode.  When summed (pushbutton IN) the Left and Right inputs will be summed/merged and then sent to both outputs.

If you want to access Split Sum (the right input is muted and the left input is sent to both the Right and Left Output jacks), open up your WDW Junction and flip the DIP switches according to the directions on the PCB.  This PCB is attached to the Left and Right Input jacks.

NOTE: Regardless of the mode you choose, stereo (pushbutton OUT) operates the same.  The left input connects directly to left out and right in to right out.

1/4" Outputs

There are three outputs on the WDW Junction:
a. 'L.Out' - This is directly connected to the 'L.In' jack when in stereo.  Connect this jack to your left amp.
b. 'R.Out' - Similar to the Left Out, the 'R.In' jack connects directly to the 'R.Out' jack.  Connect this to your right amp.
c. 'D.Out' - This output will only receive signal from the first half of your pedalboard (dry effects only).  Connect this jack to your dry amp.

You have the option to add a transformer to your right and/or dry output.  This will add ground lift and phase (isolation) to these outputs.

You can also add LongLine (balanced XLR outputs) to the outputs as well.

LongLine Outputs *Optional*

This is a great option if you plan on using an Amp/Cab sim and want to send balanced (XLR) outputs to FOH.

Alternatively, you can ALSO use LongLine outputs in conjunction with RCV to send signal to your amps up to 300 feet away in an isolation booth.  Crank that amp as loud as it goes without getting any noise complaints.  What a dream!

You only need to get LongLine on the outputs that are relevant to your rig / gigging situation.

Isolation - Ground Lift and Phase *Optional*

If you run more than one output at the same time you have the possibility of running into ground loops (a loud hum in your amps/lines) and phase issues (when frequencies between amps fight each other (not literally - that would be crazy) and cancel each other out).  Two amps that are out of phase typically sound honky - like a Goose has gotten into your rig - and the low frequencies will be diminished.

Although FOH (the sound engineer) can fix phase issues at the sound desk for direct lines, it is harder to fix phase issues between mic'd amps.

If you plan on running more than one amp at a time for gigging purposes, you should strongly consider getting the added transformer to protect against ground loops and phase issues between your amps.

A good rule to abide by with isolation / transformers is to get one LESS transformer than the amount of amps you will want to use live.  If you want to use three amps live (and not have to cut an amp or two if you get a ground loop / phase issue) then get two transformers.  If you only really need two amps live, get one transformer.

Worst case scenario.  You decide to get no transformers / no isolation, you show up to a gig with 3 amps and get a ground loop.  If you can't lift the ground on two out of three amps, you will have to go back to one amp for that gig.  Same goes for phase issues.

If you select LongLine outputs, ground lift and phase are included in the price by default for each LongLine output.

Footswitches

There are two footswitches on the WDW Junction:
a. Master Mute - Use this switch to mute all signal leaving your pedalboard. This is a great option for tuning, setting up, re-patching or to quietly put your guitar down and tell the drummer he's drowning out your solo.
b. Dry Mute - Use this switch to mute your dry output only. This is a great option if you want to hear wet effects only for things like ambience or overly saturated guitar parts.

NOTE: If nothing is plugged into the dry output the dry mute switch will not do anything.

These are designed to last and come with a 2 year warranty!

All Custom Junctions are made with high quality, durable components.

IMPORTANT - Use only 9vDC centre negative plug to power!

Current Draw/Power: 150mA, Center Neg 2.1mm

WDW Box Dimensions (1 or less XLR outputs): 115mm x 90mm x 51mm

If 2 or more XLR outputs selected, box size will go up to: 145mm x 121mm x 56mm

Input Impedance: 1Meg
Output Impedance (1/4" Outputs): 500ohms
Output Impedance (XLR Outputs): Low

Balanced Output Specs (When using LongLine as a DI replacement)
Freq. Response: 20Hz - 20kHz
Dynamic Range: 93dB
THD: 0.005%
Low Output Impedance
