Mission Engineering 529x
8 output isolated pedal power supply with high current 1000mA parallel output

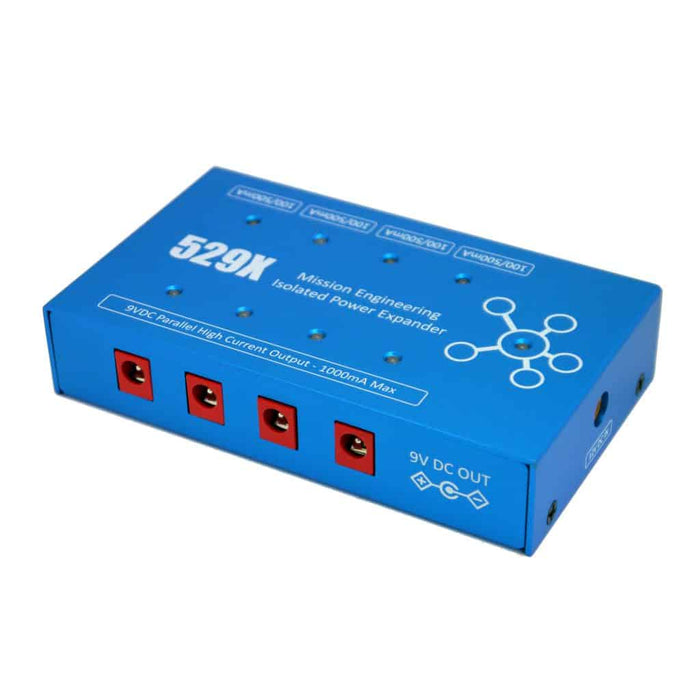

The 529X is a compact, flexible effects pedal power supply that can power both low and high current devices up to 1000mA. Each of the 8 outputs can provide 500mA at 9V (4.5W) up to a system maximum 16.8W, for use with regular analog and digital pedals. Use the supplied parallel cable to power high current devices such as modelers and multi-effects up to 1000mA.
The 529X can be used anywhere in the world with the included international wall adapter, or used along with the Mission 529M to silently power your board from compatible USB-PD sources such as USB chargers and power banks. All of the 8 outputs are isolated to ensure quiet operation with even the noisiest of digital pedals. Nine LED’s indicate the status of input and output power, showing green for normal operation and turning off when disabled or to indicate a fault condition.
With eight low noise isolated outputs and high current capability, in a compact 1”, 6oz enclosure, the 529X is the ideal power supply for lightweight pedal boards and fly rigs.
Features
8 low noise isolated 500mA outputs
International 12V 2A wall power supply included
Optionally power from USB charger or battery when used with Mission 529M
LED status indications for input and all 8 outputs
Over current and short circuit protection
Power high current devices up to 1000mA with supplied parallel cable
Specifications
Inputs: 12VDC (AC adapter included)
Outputs: 8 x 500mA, or 4 x 100mA + 1 x 1000mA parallel
Maximum Output Power: 16.8W
Height: 1”
Width: 4.6”
Depth: 2.75”
Weight: 6oz
Construction
Aluminum case
Blue anodized
Contents
529X power supply
12V international AC/DC wall unit
1 x 4 way parallel cable
9 x 2.1mm 9V DC cables
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
