Morningstar Engineering MC6 Programmable MIDI Controller MKII
The MC6 is a fully programmable MIDI controller, capable of sending up to 16 different MIDI messages per preset. Each of this message can be mapped to a specific action on a switch, which gives the user a plethora of options and precise control just from a single switch. With 30 banks and 12 preset per bank, the MC6 will sit comfortable on any pedalboard amid the varying demands of any musician.
The design philosophy for the MC6 MKII is simple, and that is what makes it so powerful.
There are 30 banks with 12 Presets and 2 Expression Presets per bank. Each preset can send up to 16 midi messages or functions, and each message corresponds to an action.
ACTION-BASED CONTROL
Program each message to correspond to an action. For example, in one preset, you can program a CC#0 MIDI message to send out when a switch is pressed, and a double tap on the same switch to change banks
MIDI MESSAGES AND FUNCTIONS
Each preset can be programmed to send up to 16 messages. Each message can be programmed to send a MIDI message or activate a function.
MIDI EDITOR FOR DESKTOP/WEB
Like the MKI, the MC6 MKII comes with an intuitive web and desktop-based editor for easy programming.
The editor gives you the ability to view your preset settings on one screen, and make any edits easily before saving your settings back to your device.
- Compact and fully programmable MIDI controller
- 30 Banks, 12 Presets per Bank, 16 Messages per Preset
- 2 inputs for additional expression control and aux switches
- LCD screen displays preset names for all switches
- On-board editing functions as well as software editor on PC/Mac
- Multiple power options
Specifications
-

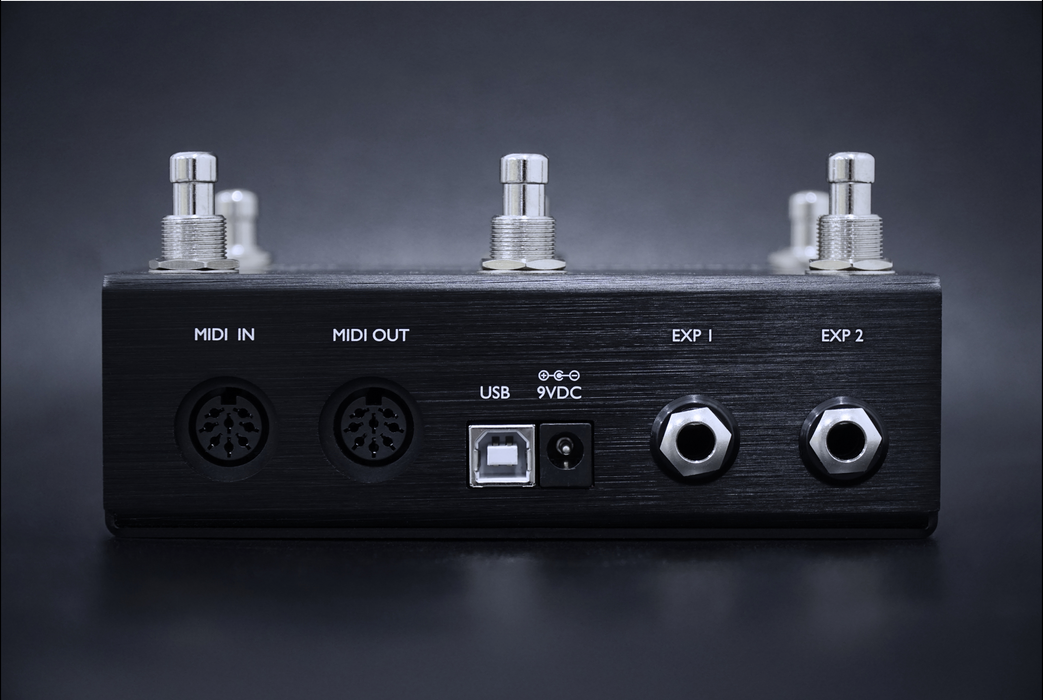

Power source requirements
- 9-12VDC via 2.1mm power jack
- 9-12V AC/DC via phantom power on MIDI OUT pins 6 & 7
- USB
- Weight: 0.8 KG
- Enclosure Dimensions: 145mm x 95mm x 45mm
- Current consumption: 80mA
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
Videos
The MC6 is a fully programmable MIDI controller, capable of sending up to 16 different MIDI messages per preset. Each of this message can be mapped to a specific action on a switch, which gives the user a plethora of options and precise control just from a single switch. With 30 banks and 12 preset per bank, the MC6 will sit comfortable on any pedalboard amid the varying demands of any musician.
The design philosophy for the MC6 MKII is simple, and that is what makes it so powerful.
There are 30 banks with 12 Presets and 2 Expression Presets per bank. Each preset can send up to 16 midi messages or functions, and each message corresponds to an action.
ACTION-BASED CONTROL
Program each message to correspond to an action. For example, in one preset, you can program a CC#0 MIDI message to send out when a switch is pressed, and a double tap on the same switch to change banks
MIDI MESSAGES AND FUNCTIONS
Each preset can be programmed to send up to 16 messages. Each message can be programmed to send a MIDI message or activate a function.
MIDI EDITOR FOR DESKTOP/WEB
Like the MKI, the MC6 MKII comes with an intuitive web and desktop-based editor for easy programming.
The editor gives you the ability to view your preset settings on one screen, and make any edits easily before saving your settings back to your device.
- Compact and fully programmable MIDI controller
- 30 Banks, 12 Presets per Bank, 16 Messages per Preset
- 2 inputs for additional expression control and aux switches
- LCD screen displays preset names for all switches
- On-board editing functions as well as software editor on PC/Mac
- Multiple power options
Specifications
-
Power source requirements
- 9-12VDC via 2.1mm power jack
- 9-12V AC/DC via phantom power on MIDI OUT pins 6 & 7
- USB
- Weight: 0.8 KG
- Enclosure Dimensions: 145mm x 95mm x 45mm
- Current consumption: 80mA
