INTRODUCING MONO POWER SUPPLY
Offering creators clean, isolated power to match any
pedal rig and universally compatible with any power
source worldwide. Designed for on-the-fly gigs and
clutter-free studio sessions. Expand the total outputs by
combining two MONO power supplies for truly portable
and modular power distribution.
MONO Power Supply is the latest addition to the MONO PFX
line and is an ultra-slim, low noise, expandable pedalboard
power supply. It’s available in 3 sizes - small, medium and
large - each designed to meet diverse pedalboard power
requirements.
Each Power Supply is built with a lightweight and durable
aluminum casing and at just 1” depth, will fit underneath the
shallowest of pedalboards. When you’re ready to step up to a
bigger board, you can simply link the Power Supply, Small, to
a Power Supply, Medium or Large and power up to 15 pedals.

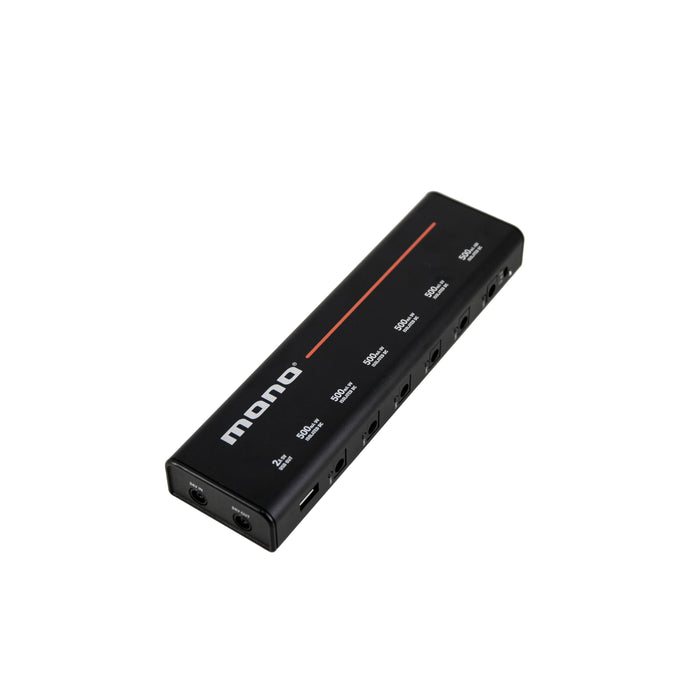

MONO POWER SUPPLY, MEDIUM
PRODUCT DESCRIPTION
The MONO Power Supply, Medium is an ultra-slim, expandable pedalboard power supply. It features 6 low-noise isolated outputs, including one with variable voltage. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1” depth, will fit underneath the shallowest of pedalboards. When you’re ready to step up to a bigger board, you can simply link the MONO Power Supply, Medium, to a Small or Large and power up to 15 pedals.
IN THE BOX
- MONO Power Supply, Medium
- 2.1mm x 5.5mm Power Cable Short (x3)
- 2.1mm x 5.5mm Power Cable Long (x3)
- IEC Cable
- EIAJ-05 Power Adapter Cable
- 24V Power Adapter
- MONO Power Supply Mounting Brackets (x2)
- M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
- Hook-and-Loop Tape
FEATURES
- Input filter and multi-stage output filters for extremely low noise floor
- Short circuit, overload and thermal protection
- Energy efficient usage and design

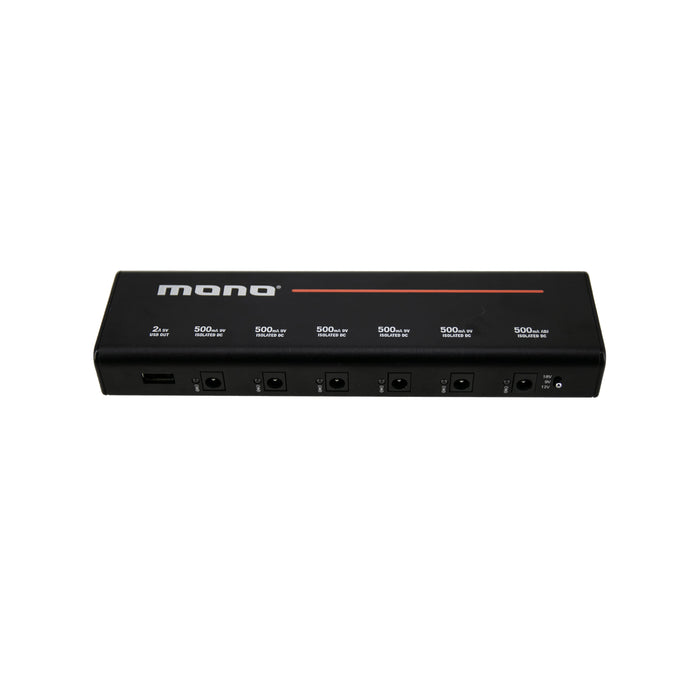

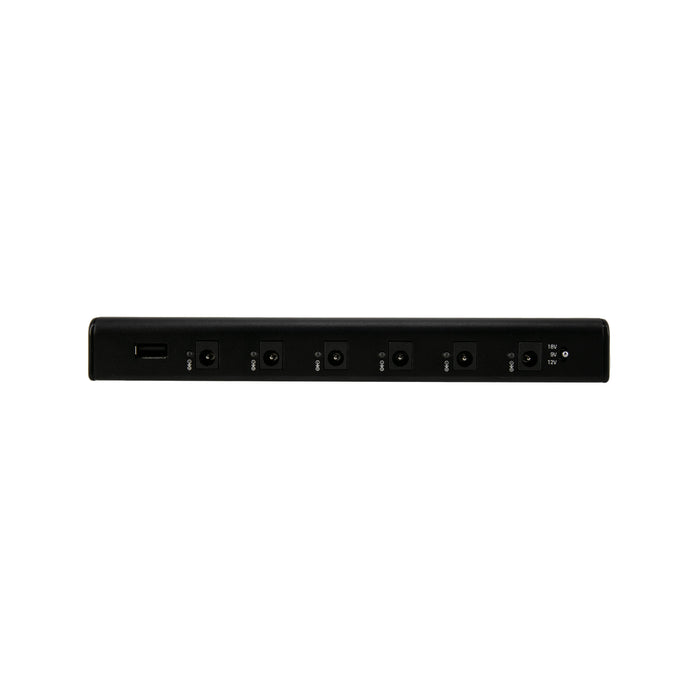

- 5 high current, isolated, low-noise DC outputs
- 1 variable (9/12/18V) high current isolated, low-noise DC output
- USB OUT (5V/2A) for powering a MONO Power Supply, Small or charging devices

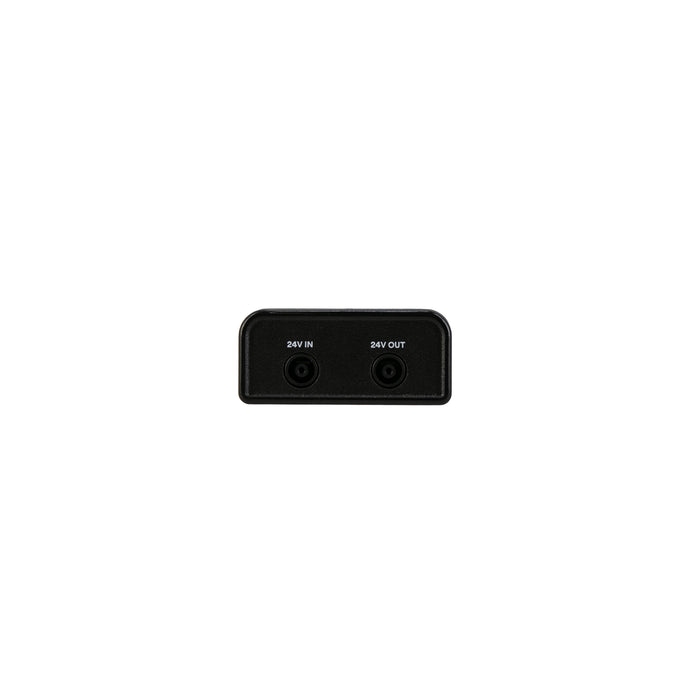

- 24V OUT @ 2A for powering another MONO Power Supply, Medium/Large or other devices
- Ultra slim profile below 1” for mounting below pedalboards
- Ultra light 205g (7.23oz) to always remain portable
- Durable aluminium enclosure for all playing conditions
- Universal 24V power adapter for compatibility with any power source worldwide
- Individual status LED for each outlet to show output status
- 6 power cables included
- Light weight, rugged mounting brackets included
- Premium hook-and-loop tape for an alternative form of mounting included
Tech specs
- Input: 24V DC @ 3A (positive barrel negative center 5.5mm x 2.1mm plug)
- Outputs:
- 9V DC @ 500mA center negative (x5)
- 9/12/18V DC @ 500mA center negative (x1)
- 5V @ 2A USB-A (x1), 24V DC @ 2A (x1)
- Weight: 205g (7.23oz)
- Size: 203 x 56 x 25 mm (7.99 x 2.20 x 0.98 inches)
