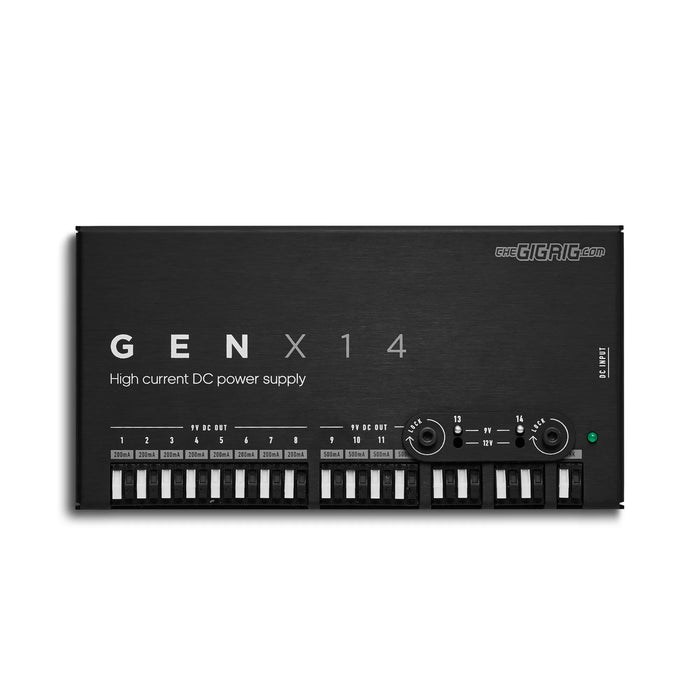

TheGigRig Modular Power Supply has a new heart. We're delighted to announce GenX14.
If your pedals aren't powered properly, nothing is going to sound like it should. TheGigRig GenX14 has all the juice you need for even the most current hungry pedalboard, while staying light and compact.
Confused? Don't be. Power can get complicated. We offer a service to help you understand exactly what you need to power your rig.
GenX14 Outputs
8 x 9VDC@200mA: 8 individual 9VDC outputs capable of a conservative 200mA each. This is more than enough for most pedals. All your standard overdrives, analog modulation and delay pedals will be able to be powered from one of these outlets.
4 x 9VDC@500mA: 4 individual 9VDC outputs capable of 500mA each. This is for your current hungry digital pedals from brands like Strymon, Eventide, Line6 etc. Each output will deliver exactly what these pedals need to operate at their best.
2 x 9/12VDC@1000mA: If you run valve OD’s/preamps, or something like a H90, these will need a huge amount of current to keep the pedal operating in the range it needs to be. These two outputs can each deliver a massive 1000mA each at either 9 or 12VDC. For pedals such as Kingsley and Effectrode this amount of current is a must and delivered beautifully by the GENX14.
Each of the 1000mA outputs has two sets of connection tabs. It might be that you want to power a high current digital pedal and something else. The two sets of connection tabs for each of the 1000mA outputs gives you this option.
DC Input: Plug your DC power in here. GenX14 is designed to work with the 24V DC power supply provided but it will work on a wide voltage range from 9-34V DC.
IMPORTANT - Whatever you put into the DC INPUT will appear on the LINK OUT. Using the supplied 24V power supply, you will get 24V on the link out.
Dimensions - GENX14 – 158Lx82Wx22Dmm (6.22Lx3.22Wx0.87D”)
G24V Power Supply – 132Lx57Wx32Dmm (5.2Lx2.24Wx1.26D”)
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
