Vongon Ultrasheer Vibrato + Reverb

$729.00
IN STOCK
Love it, or swap within 14 days | Free Gravity Pick!
Afterpay
4 interest-free payments of $182.25 More info

Free Shipping for orders over $199

Orders usually arrive in 2 - 3 days Free if spend over $199

Love it, or swap within 14 days

Don't like what you hear? No worries - swap within 14 days.

Best service in town

4.8 / 5 from over 150+ Google Reviews Buy from the best in AUS.

;

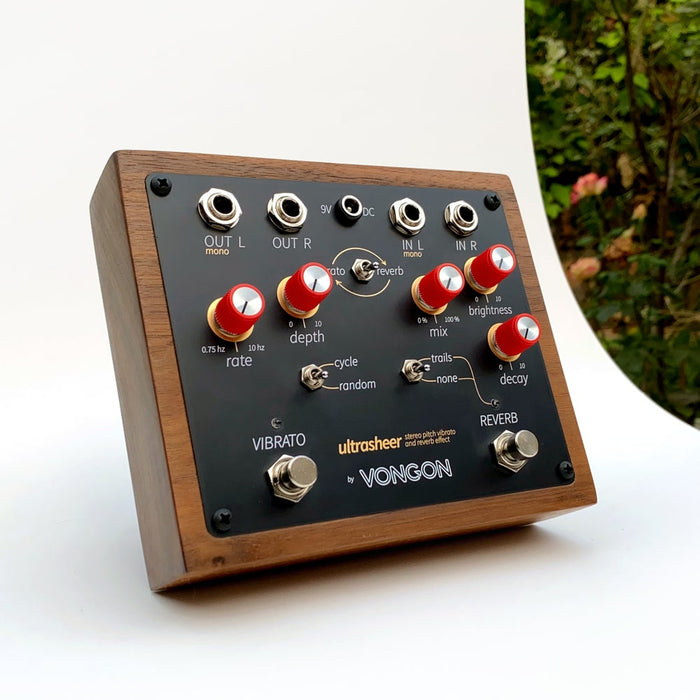

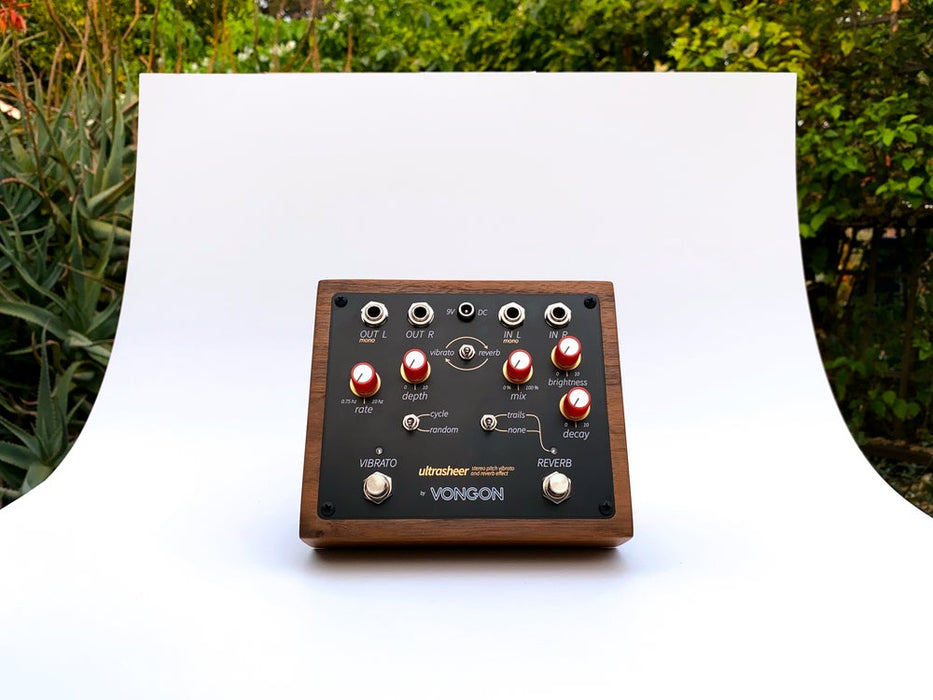

Ultrasheer is a stereo reverb and vibrato combination inspired by the early digital studio effects units of the late 1970’s, capable of moving you from a lush warbled space to a shallow room through an intuitive and satisfyingly tactile interface.

Reverb

The reverb algorithm is based on the plate reverb sounds of the classic Lexicon 224 from 1978. The digital processing is downsampled to 16 bits and follows the topology described in the Dattorro paper linked here. This mix of legacy digital processing with modern high quality hardware creates a retro lush sound that we love.

Vibrato

The vibrato is a smooth and transparent digital pitch shifter that preserves the full bandwidth of your input signal and does not darken the sound which is often found in the analog counterparts. Two modulation waveforms are available, “cycle” which is a sine wave for classic Leslie-speaker-type sounds and “random” which is a smoothed sample and hold waveform that creates pitch warbles similar to a warped vinyl or sun-baked cassette.

Dynamic Stereo Routing

The digital processing automatically adjusts for mono in/mono out, mono in/stereo out, or full stereo based on the configuration of input and output cables plugged into the device.

Walnut Enclosure

Housed in a high quality single block of dark walnut that is CNC routed, hand sanded and polished.

Features + Specifications

  • 32 bit floating point DSP (except for 16 bit vintage reverb algorithm)
  • 24 bit / 48 khz digital converters
  • Input impedance: 53K Ohms
  • Output impedance: 40 Ohms
  • Analog buffered bypass
  • Soft touch foot switches
  • Stereo / Mono modes automatically selected based on the cables plugged in
  • Genuine Rogan knobs made in USA
  • Wooden enclosure made from a single block of dark walnut
  • Matte black aluminum faceplate with gold traces
  • Power - 2.1mm 9VDC Center Negative 180mA
  • Dimensions - 6.5" wide, 5.5" long, 2.25" tall
  • Designed and built in Oakland, California U.S.A.

Warranty & Returns

All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!

Shipping

We send A LOT of packages every week so don't worry about the shipping side of things!

We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.

If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.

We ship mainly with Australia Post but may use a courier depending on location and size of the package.

Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.

Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.

Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
