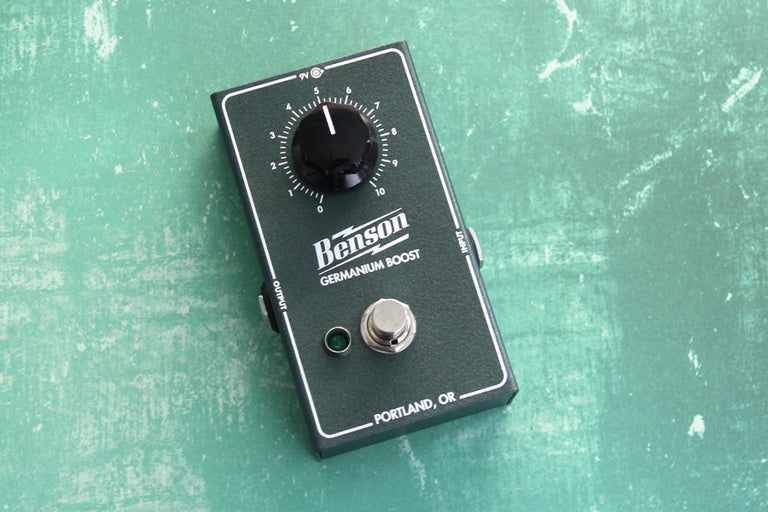

Benson Amplifiers Germanium Boost

$329.00
Sold out
Love it, or swap within 14 days | Free Gravity Pick!
Afterpay
4 interest-free payments of $82.25 More info

Free Shipping for orders over $199

Orders usually arrive in 2 - 3 days Free if spend over $199

Love it, or swap within 14 days

Don't like what you hear? No worries - swap within 14 days.

Best service in town

4.8 / 5 from over 150+ Google Reviews Buy from the best in AUS.

;

When designing the temperature controlled fuzz, we tried some weird approaches. One of the things we tried was utilizing a voltage controlled error correcting circuit to bias a single germanium transistor. It ultimately didn’t work for the fuzz, since that circuit is comically sensitive to transistor gain attributes.
We did find a place for it though.

It turns out it was PERFECT for achieving a germanium clean boost that, (like our fuzz) is impervious to component drift, leakage, and temperature....moreso in fact. We also fixed a couple other issues preventing the germanium transistor from being used as a convincing linear boost...we increased the input headroom (even a normal guitar signal will drive a germanium transistor into unwanted input distortion without some tweaks) and increased the input impedance (a BJT transistor would normally thin out bass frequencies and interact neg- atively with whatever flows into it).
The result is a germanium clean boost where you can utilize a germanium transistor WITH- OUT the weird artifacts that were previously accepted as part of the deal...temperature sen- sitivity, drift, and suboptimal input impedance and headroom.

It takes about 10 seconds when the boost is first powered up for the error correction circuit to bias the germanium transistor. After that it gets interesting....we can hear how it makes guitar signals sound more musical...even when set at the same volume as the bypassed tone. It seems to bring out the attack of the guitar while simultaneously smoothing out notes, like a compressor but different. It’s hard to describe. It appears to cut the bad parts of a signal and enhance the good. It’s killer on bass. It helps acoustic guitar pickups sound more natu- ral. And of course it’ll push your amp into a frenzy.

We hope you like it.

POWER SUPPLY
This pedal is for use only with a 9vdc Boss syle center negative power supply. There is space for a battery which is activated when a cable is plugged into the input, and there is no power supply plugged into the DC jack.
Please do not subject this pedal to more than 9vdc or the pedal or power supply could be destroyed.

WARRANTY INFORMATION:
2 years excluding modification or damage. Visit www.bensonamps.com for more information.
