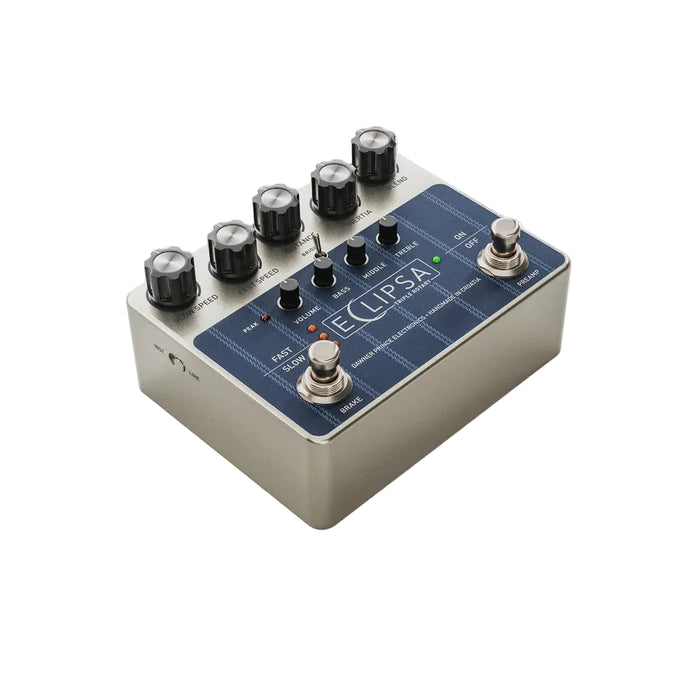

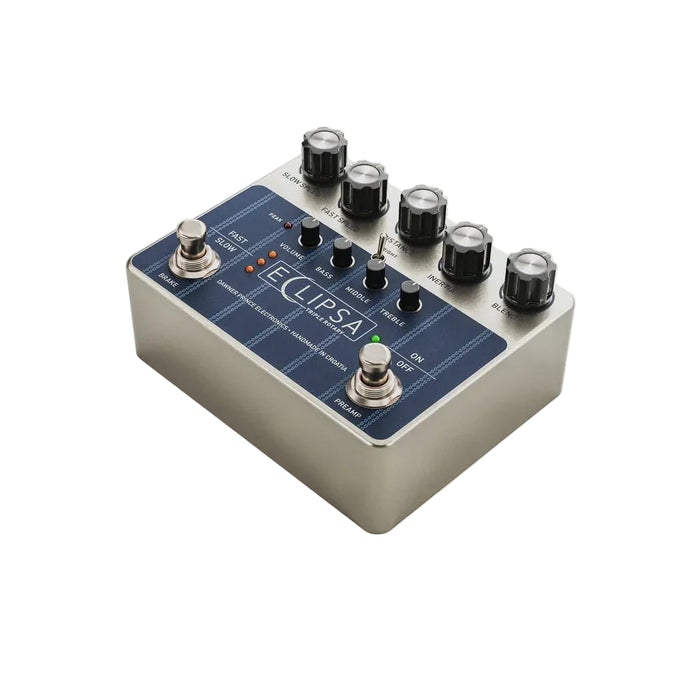

DAWNER PRINCE ECLIPSA TRIPLE ROTARY

Eclipsa™ is a full rotary cabinet recreation of the iconic Yamaha® RA-200, capturing the movement, depth and tonal complexity of its complete multi-speaker system, where rotating and static drivers interact to create the cabinet’s signature sound.
Its rotary engine allows finely tuned control over behavior, with smooth transitions between speeds, adjustable mic simulation distance and a variable mix between rotating and static speakers. An expression input adds continuous speed control, while three LEDs visually track rotors motion and depth settings in real time.

Alongside the rotary cabinet section, Eclipsa also features an Alembic® F-2B–style preamp implemented with FET technology, preserving the clarity, warmth and musical response of classic tube design. The preamp’s Volume, Bass, Middle, Treble and Bright controls provide wide tonal flexibility, shaping everything from open, sparkling cleans to more driven, harmonically rich textures. A Peak indicator ensures proper gain staging, making it easy to set the ideal level before feeding the rotary section.

Built for professional rigs, Eclipsa supports both mono and stereo output configurations for live and studio use. A magnetic relay switching system ensures silent and reliable operation, while full MIDI implementation enables comprehensive parameter control across complex rigs.
With 127 onboard presets, Eclipsa allows complete performance setups to be stored and recalled with consistency and precision. The custom CNC-machined, anodized aluminum enclosure provides long-term durability and mechanical stability for demanding professional use.

A legendary rotary cabinet and a studio-grade preamp — engineered as a single, uncompromising instrument.

FEATURES:

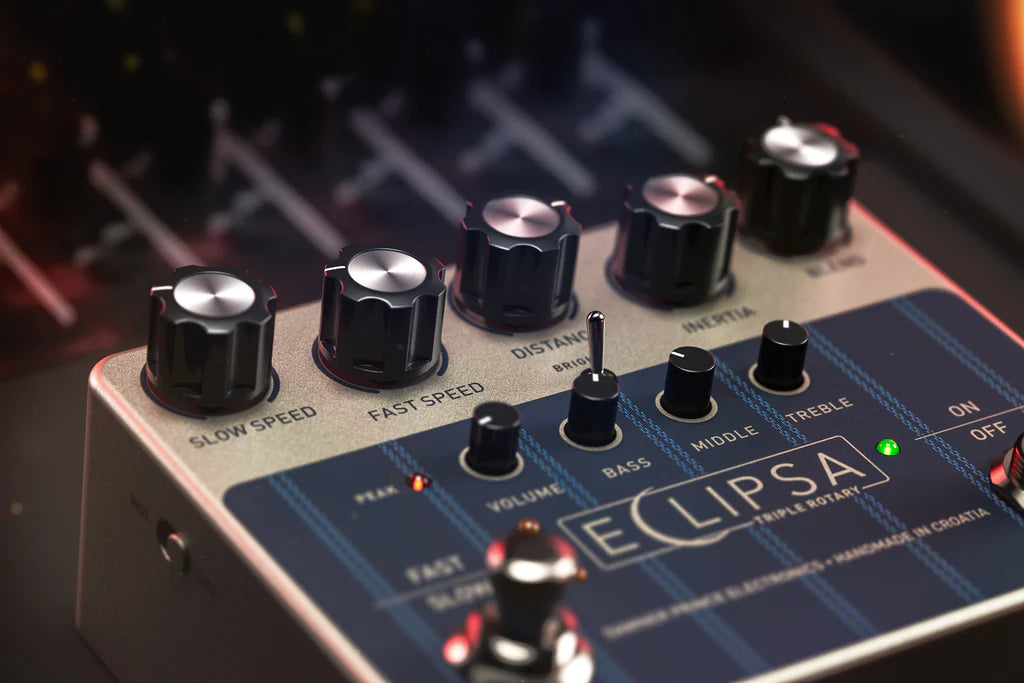

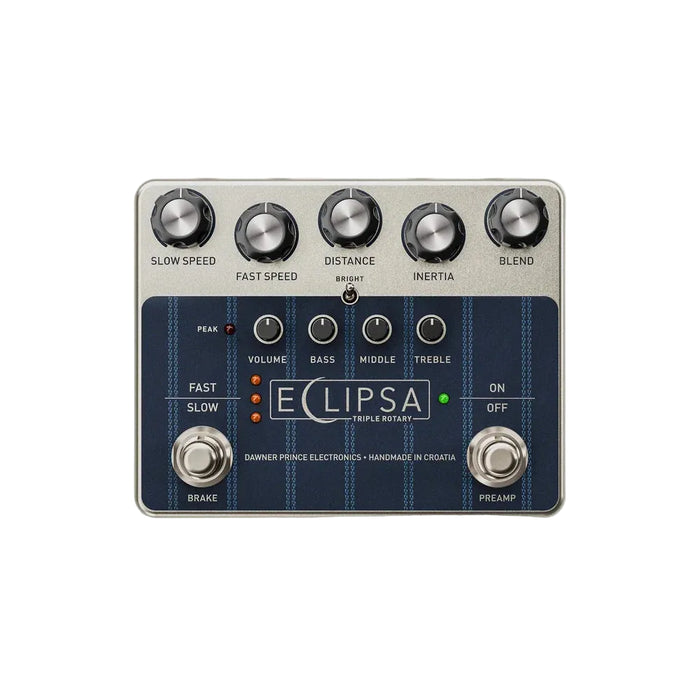

Slow Speed
Controls rotary speed in Slow mode.

Fast Speed
Controls rotary speed in Fast mode.

Distance
Adjusts the virtual microphone position relative to the rotary cabinet.

Inertia
Sets acceleration and deceleration time between speed transitions.

Blend
Mixes the rotary cabinet signal with a static 4×12" speaker simulation.

Volume
Sets preamp output level and influences saturation. The Peak LED indicates when clipping is approached.

Bass
Adjusts low-frequency response with warm, musical character.

Middle
Controls midrange presence and note definition.

Treble
Sets high-frequency articulation and top-end clarity.

Bright
Adds subtle high-frequency emphasis at lower Volume settings.

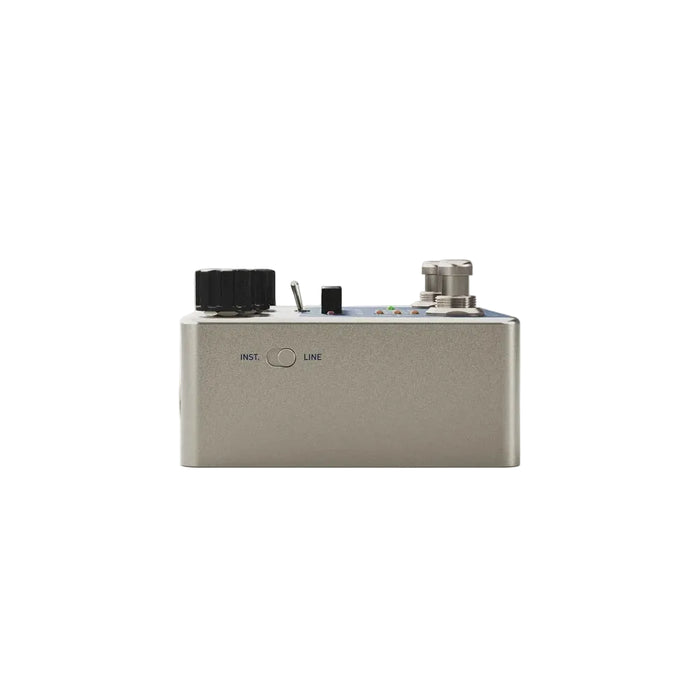

Instrument / Line Switch
Configures the input stage for guitars, high-output pickups, synthesizers, and line-level equipment.

True / Buffered Bypass
ON/OFF footswitch with bi-color LED. Hold to switch between True Bypass and buffered Preamp-On modes.

Fast / Slow / Brake
Tap to switch speeds. Hold to engage Brake mode. Three LEDs indicate rotor speed and Distance settings.

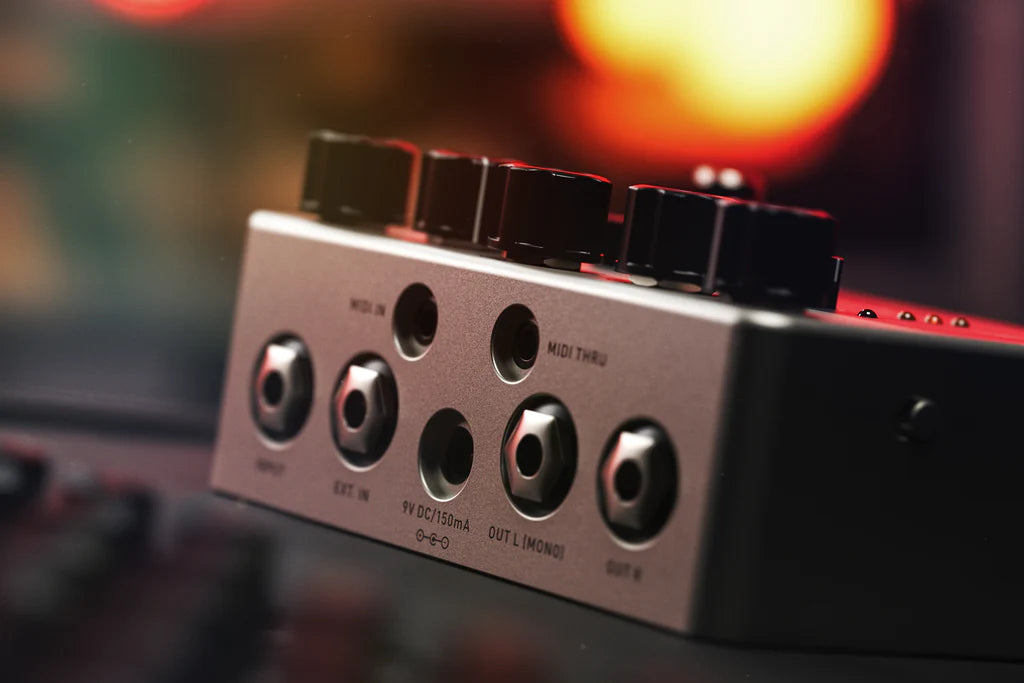

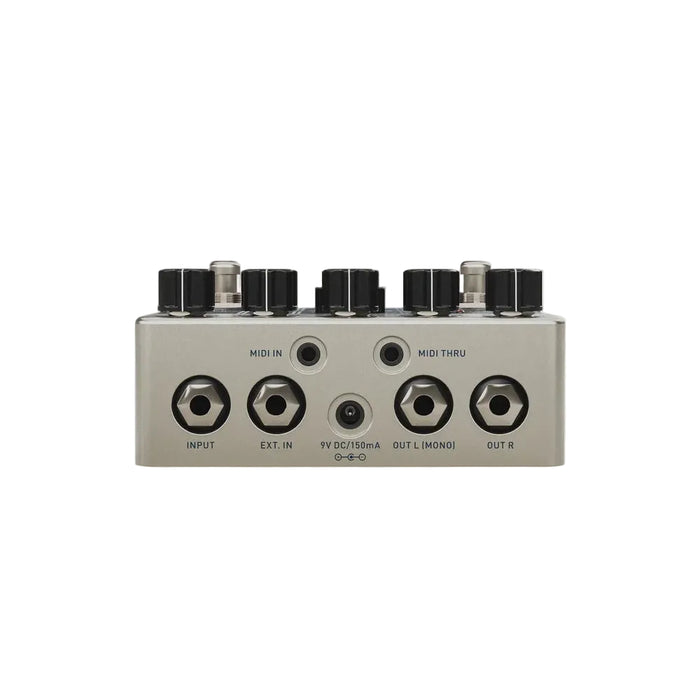

EXT IN (Expression Input)
Expression pedal input for continuous rotary speed control.

MIDI In / Thru
Full support for Control Change parameter control and Program Change preset recall (127 presets plus Live Mode), with configurable MIDI channel assignment.

Stereo Outputs
Left/Mono and Right outputs derived from three virtual microphone signals.
