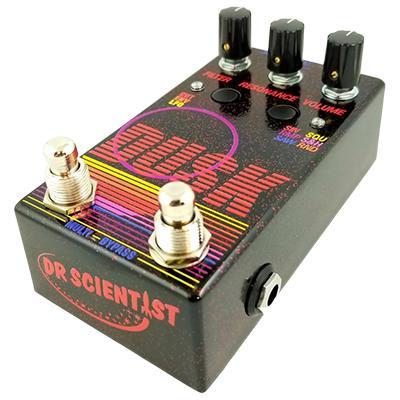

Dusk is a digitally controlled analog filter. At its heart is an analog 24dB/Octave low pass filter based around an old-school integrated circuit called an Operational Transconductance Amplifier or OTA. The OTA runs off of split +/-9V rails for great audio quality and a deep filter sound. The digital side brings a whole bunch of convenient and powerful features like controlling the filter setting, tap tempo, MIDI, 6 LFOs, and a platform for all the best filter modes in one small pedal.
FEATURES
- 3 Filter Modes, 6 LFO Waveforms in a small form factor
- High quality analog signal path
- Premium parts and components throughout
- True Bypass with soft touch relay switching
- MIDI implementation of all digital controls
- Expression pedal/CV control over Filter Cutoff
- Top mounted audio and power jacks
- Designed and handmade in B.C., Canada
KNOBS
- FILTER – Mode dependent. Controls Filter Cutoff or Filter Range.
- RESONANCE – Analog feedback control adds resonance to filter.
- VOLUME – Analog volume control.
- MODE – Select 1 of 3 operating modes (Cutoff, Envelope, LFO).
- WAVEFORM – Select 1 of 6 waveforms for LFO Mode.
- MULTI – Mode dependent. Automated Filter Sweep, Envelope Freeze, LFO Speed Ramping.
- BYPASS – Engage or disengage the effect
OPERATION
- Input/Output Impedance: 500kΩ/1kΩ
- 150mA @ 9VDC, 2.1mm centre negative plug
- True Bypass with soft touch relay switching
ADDITIONAL SPECS
- Mono input, Mono output, TRS Expression input/TS Control Voltage input
- Filter Control: +/-24dB analog, resonant low pass filter
- Exp Input: TRS cable, any resistance
- All analog signal path
- Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
