Sold By The Meter

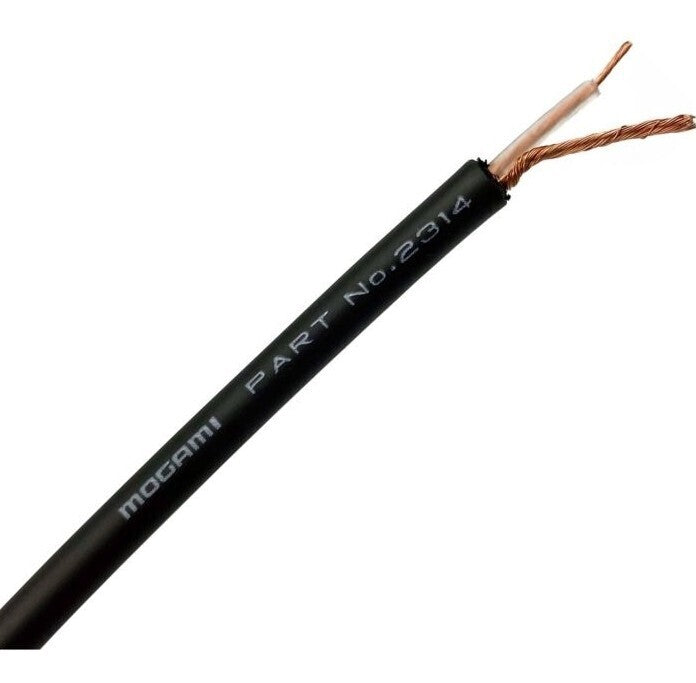

1 Metre of Mogami W2314 Miniature Instrument Cable - Black
1 Metre of the Mogami W2314 cable. A miniature instrument cable which is ideal for pedal patch leads, and other high quality cables requiring a thin outer diameter, a coaxial design, and small cross section. 4mm outer diameter.
Ideal Pedal Patch Cable
The Mogami W2314 is designed for excellent sound in a compact unbalanced cable. Special fillers inside the conductor yield mechanical strength that is much higher than any comparable diameter cable without any special contrivance.
Features:
- Miniature small diameter cable
- Highly flexible and light weight
- PVC outer jacket for durability
- Coaxial design
Specifications:
- Conductor details: 30 / 0.8 OFC
- Size (mm²): 0.51mm²
- Insulation Ov. Dia (Mm): 1,5Ø
- Material: XLPE
- Shield Type: Served Shield - 37 / 0.12 OFC
- Jacket Ov. Dia. (Mm) 4.0Ø
- DC Resistance at 20 ° C Inner Conductor: 0.13Ω / m TYPE
- Shield Conductor: 0.045Ω / m TYPE
- Capacitance at 1kHz: 20 ° C 110pF / m
- Material: PVC
- Colour: Black
