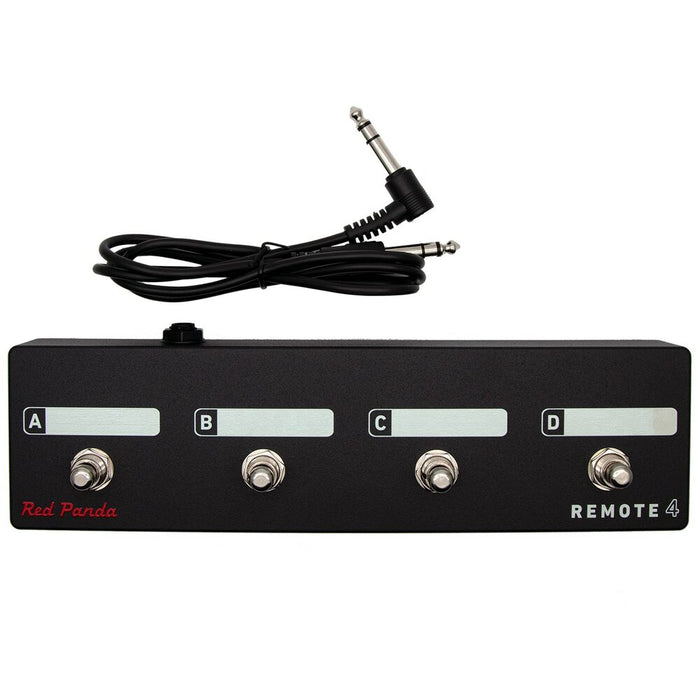

Tensor remote switch with 4 modes to access presets and pedal functions. Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol.

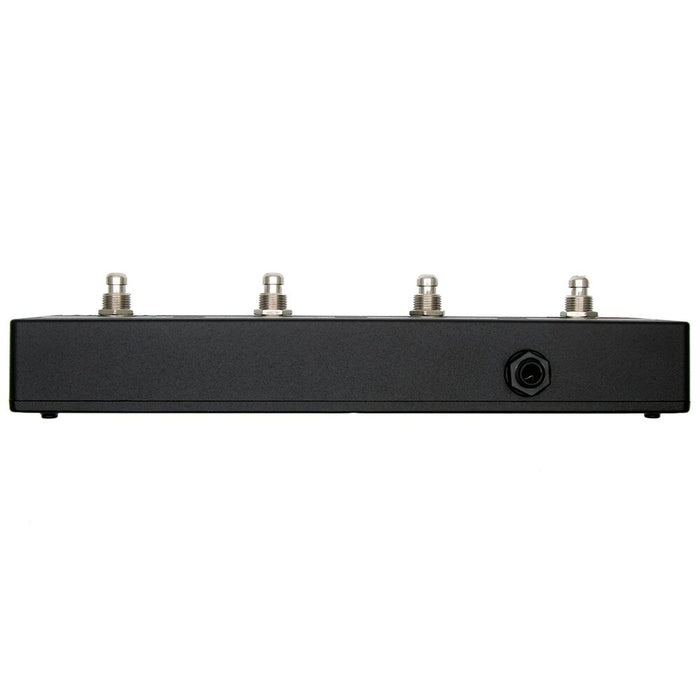

Connects to the Tensor or Particle 2 via a 1/4" TRS cable (included). The Tensor firmware needs to be version 1.1 or later (available here). The Remote 4 does not require power.
Size: 10" x 2.75" x 2.25" high
TENSOR REMOTE SWITCH MODES
| Mode | Switch | Function |
| 1 | A | Preset 1 (hold to save) |
| B | Preset 2 (hold to save) | |
| C | Preset 3 (hold to save) | |
| D | Preset 4 (hold to save) | |
| 2 | A | Left footswitch |
| B | Right footswitch | |
| C | Preset 1 (hold to save) | |
| D | Preset 2 (hold to save) | |
| 3 | A | Record / Overdub |
| B | Play / Stop | |
| C | Play Once | |
| D | Toggle TIME & PITCH (tap) Toggle SPEED (double tap) | |
| 4 | A | Toggle SPEED knob |
| B | Toggle TIME knob | |
| C | Toggle PITCH knob | |
| D | Toggle RAND knob |
LOOP SAMPLER (REMOTE MODE 3)
Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects. See the user's manual for complete details.
CONFIGURING THE REMOTE SWITCH:
-
Start with the pedal powered on and nothing plugged into the CTRL port.
-
Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times
to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configu-
ration immediately.
-
Press one of the buttons on the remote switch to select a mode.
-
Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to
indicate that the configuration has been saved.
