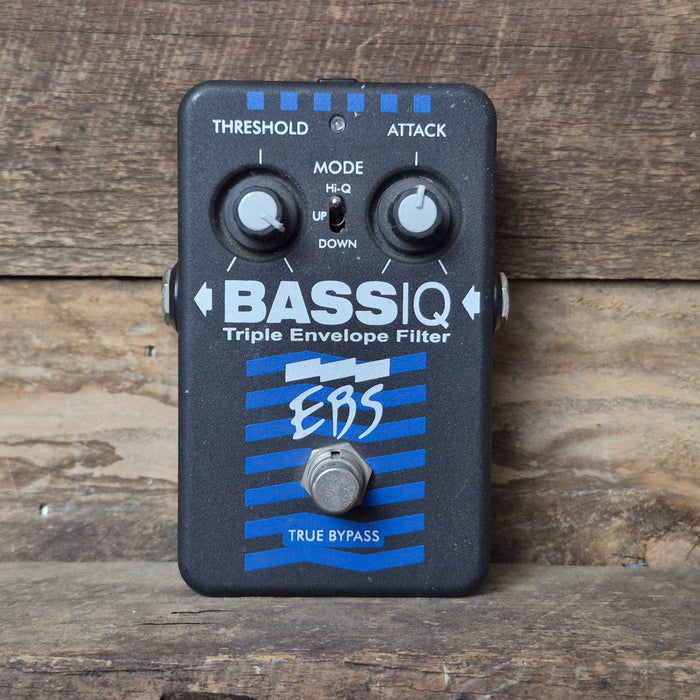

Second Hand EBS BassIQ Analog Envelope Filter
The EBS BassIQ is a specialised analog envelope filter pedal designed specifically for bass guitar. It utilizes a dynamic, touch-sensitive circuit that triggers a filter sweep based on the intensity of your playing. The pedal operates on a 100% analog signal path, ensuring low-latency response and maximum preservation of the instrument's foundational low frequencies.
Operation Modes
The pedal features three selectable filter modes to accommodate different tonal requirements. In Up mode, the filter sweeps upward from low to high frequencies upon note attack, delivering classic vocal auto-wah effects. Down mode reverses the filter envelope to sweep downward, which is ideal for simulating sub-heavy, synthesizer bass tones when paired with an octave pedal. Hi-Q mode produces a sharpened filter peak, resulting in a highly pronounced, envelope-driven sweep that emphasizes higher frequencies to cut through dense mixes.
Controls and Calibration
The user interface provides immediate access to primary parameters, complemented by internal controls for advanced calibration. The Threshold knob adjusts the input sensitivity, determining how hard you must strike the strings to trigger the envelope sweep. The Attack knob regulates the speed of the filter response, controlling how fast the envelope opens and closes. Internal trim pots located inside the chassis allow you to adjust the circuit's overall gain and high-pass filter mix. This allows the user to balance the pedal’s output level and low-end retention to match both passive vintage pickups and high-output active electronics.
Specifications and Construction
This unit features a full analog envelope follower circuit with a frequency response optimized for bass guitar to prevent low-end signal loss. It is housed in a heavy-duty, road-ready cast metal enclosure and runs on a 9V DC regulated power supply or a standard 9V battery.
Warranty & Returns
All New products are covered by the manufacturers new warranty. Please check their website for the length of warranty and warranty conditions. If an item you receive is faulty get in touch with us ASAP. Second Hand products come with a 4 week warranty from us. If there is an issue let us know ASAP! This covers normal use and does not cover accidental damage, misuse, wrong power plugged into it, modding, water damage or any other damage caused by mistreatment. Just treat it nice and all will be good!
Shipping
We send A LOT of packages every week so don't worry about the shipping side of things!
We've never lost a thing and your awesome new gear will be packed up really well to avoid any damage in transit.
If your order comes in before 2pm we will ship it same day. Most of the time we pack things up all the way to 4pm so just call if you need it to leave same day after 2pm.
We ship mainly with Australia Post but may use a courier depending on location and size of the package.
Free Post ships with Australia Post standard and expected shipping times are between 4-6 business days depending on location. It will be longer to outside of metro and rural areas.
Express Post will usually be with you next business day in metro areas of QLD, NSW, SA, VIC and TAS. WA will take 2 days to metro and extra days after that to out side metro and rural areas.
Everything we ship has a tracking number with the exception of some power cables and smaller envelope packages. You will be emailed tracking once your order has been shipped!
