Morningstar Engineering ML5R Reorderable Loop Switcher

Morningstar Engineering ML5R Reorderable Loop Switcher

by Morningstar Engineering
$439.00
IN STOCK
Love it, or swap within 14 days
Afterpay
4 interest-free payments of $109.75 More info

Free Shipping for orders over $199

Orders usually arrive in 2 - 3 days

Free if spend over $199. Large Packages excluded

Love it, or swap within 14 days

Don't like what you hear? No worries - swap within 14 days.

Best service in town

4.8 / 5 from over 500+ Google Reviews Buy from the best in AUS.

Maintain order. Or not.

ML5R is a reorderable loop switcher that redefines your approach to audio effects. Experience entirely new sounds from your existing effects - just by switching up their order.

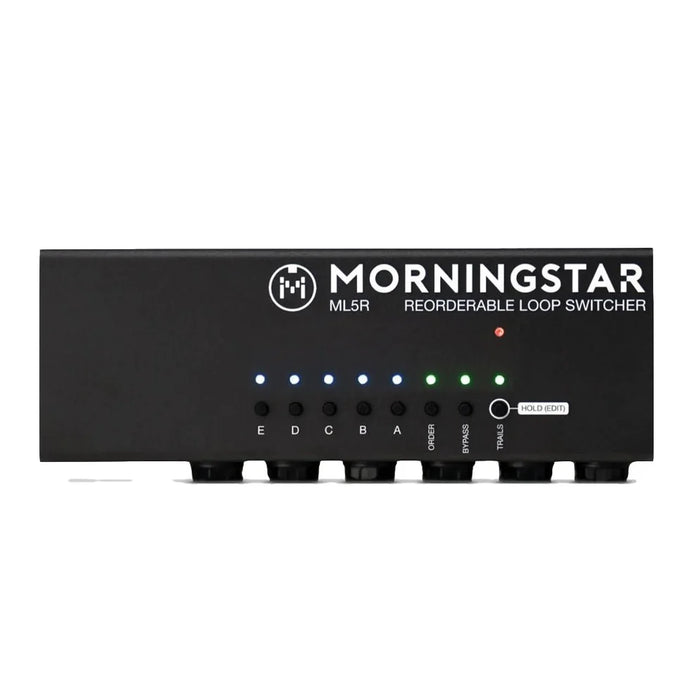

Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.

No editor required.

Everything you can do on ML5R, you can do on ML5R.

Set loop Order, Bypass and Trails with just a few simple switch presses.

Set Order.

Simply press the loop buttons  in your desired order, and the effect loops will be arranged accordingly. In the example below, the order is B > A > D > C > E.

Set Bypass.

Select the loops that you want engaged when you recall an ML5R preset. In the example below, loops A, C and E are engaged while the rest are bypassed.

Loops can also be engaged or bypassed individually after a preset has been recalled.

Set Trails.

Enable spillover trails for your desired loop.

Save.

Save your custom loop order, bypass states and trails as a preset in any of the 128 user slots.

Simply send ML5R a Program Change message from 0 to 127 to recall your desired presets.

5 mono loops in series.

Full MIDI Capabilities.

Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute and more.  Take full control of ML5R with your MIDI controller.

If you use a Morningstar MIDI controller, a dedicated ML5R message type allows quick and easy access to all functions without needing to refer to any MIDI chart.

TECH SPECS



Dimensions

169 x 58 x 58 mm

400g



Memory
No. of presets: 128

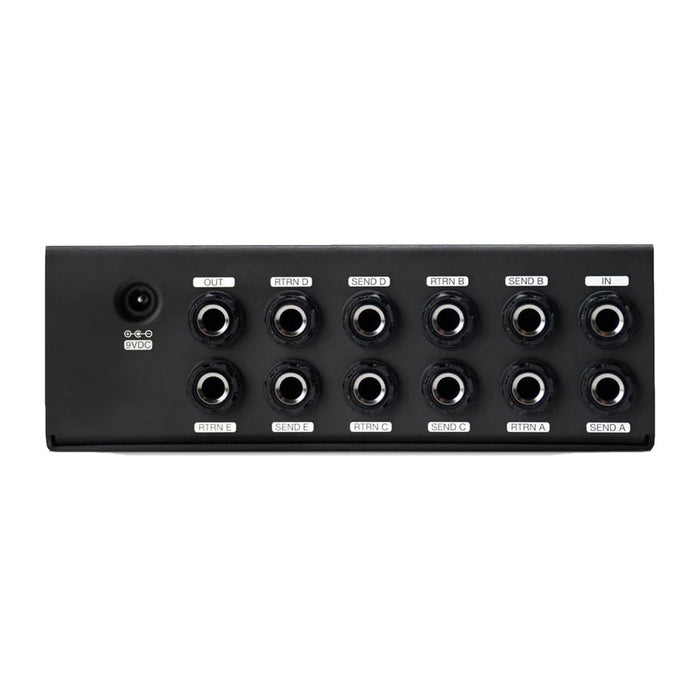

I/O Ports (buffered)

1x Audio In

1x Audio Out

5x Sends (mono)

5x Returns (mono)

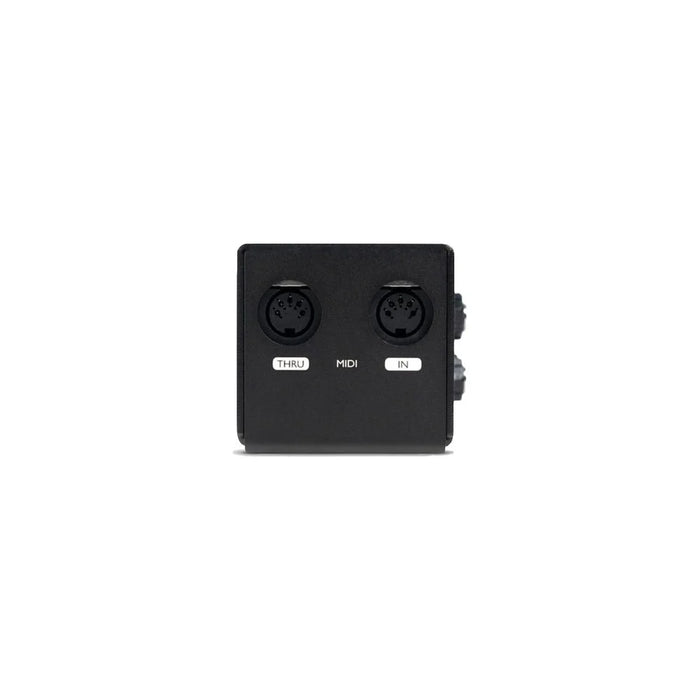

1x 5-pin MIDI In

1x 5-pin MIDI Thru



Impedance

Input/Returns: 1M ohm

Output/Sends: Approx 100 ohm



Power Requirements

9-18V DC center negative
Minimum 160mA

More information in the ML5R Manual.


Need a true bypass loop switcher? Take a look at the ML5.
Need stereo, more loops and the ability to split/merge signals? ML10X is for you.
